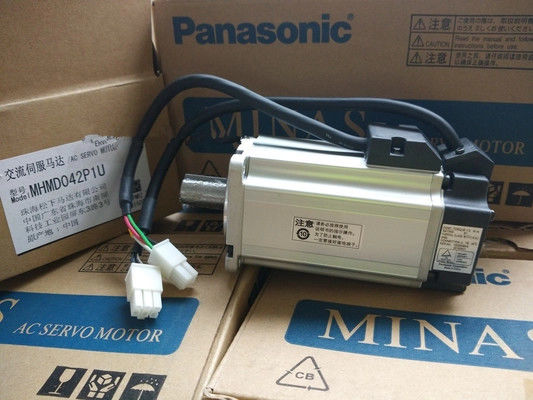

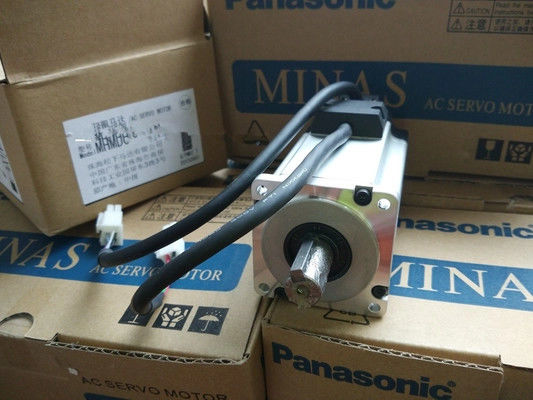

MHMD042P1U Panasonic 200VAC 3000 RPM AC Industrial Servo Motor

MHMD042P1U Panasonic 200VAC 3000 RPM AC Industrial Servo Motor

Features:

Specification:

• Panasonic mians A4

• Product Name: AC Servo motor

• Part No: MHMD042P1U

• Manufacturer: Panasonic

• Output (W): 400W

• Brake: Without brake

• Encoder Resolution: 17-BIT Incremental

• Inertia Ratio (x 10-4 kgx m2): 0.67

• Frame Size: B

• Rated Torque (Nm): 1.3

• Rated Speed (RPM): 3000

• Input Power Supply: Single phase/3-phase 200V

• Application Positioning Type: NA

• Application Driver Standard Type: MBDDT2210,MBDDT2210P,MBDDT2210N,MBDDT2210003

• Motor types:low, middle and high inertia

• Speed response frequency 1kHz

• Incremental encoder (2500P/R)

• Absolute Encoder (17bit) Available

• Vibration control

• Real-time auto tuning

• Pulse and analog command input

• Fast response and positioning

• Position, velocity and torque control

Panasonic servo motor A4 series features:
1, automatic adjustment
* High performance real-time automatic adjustment gain
* According to the change of the load habit weight, with the adaptive filter, the gain can be automatically adjusted from low rigidity to high rigidity.
* When the vertical axis with different load torques is generated due to different rotation directions, it can be adjusted automatically.
* With abnormal speed detection, the abnormal speed generated during gain adjustment can be adjusted to normal.
* Through the display panel operation, you can set and confirm while monitoring the real-time adjustment.
2, high speed and high response
* Speed ​​response frequency up to 1KHz.
* Built-in instantaneous speed observer to detect the speed of the motor at high speed and high resolution.
* High performance mechanical adaptability
* High-speed automatic adjustment function for high-speed positioning, whether it is a belt-driven machine that is easy to generate resonance or a high-rigid screw drive machine.
3, low vibration
* Adaptive filter
* Built-in adaptive filter, which automatically adjusts the frequency of the notch filter according to the mechanical resonance frequency.
* It is possible to control noise due to mechanical instability and changes in resonance frequency.
* Two notch filters
* Built-in filters with two *** channels different from the adaptive filter.
* Two notch filters can set the frequency and amplitude of the notch in units of 1 Hz.

The following are some of the drive models, both new and used are stocked:

MSDA3A3A1A MSDA5A3A1A MSDA013A1A
MSDA023A1A MSDA043A1A MSDA083A1A
MDDA103A1A MDDA153A1A MDDA203A1A
MDDA253A1A MDDA303A1A MDDA353A1A
MSDA403A1A MSDA503A1A MSD023A1XXV
MSDA083A1XXV MSD043A1X MSDA043D1A
MQDA043A1A MUDS043A1A MUDS023A1A
MUDS083A1A MUMS082A1E0S MUDS083A1M
MUMA012P1T MUMA022P1T MUMA042P1T
MUMA042P1S MUMA012P1S MUMA022P1S
MUMS082P1S MSDA043A1XXV MSDA013A1XXV
MKDET1505P MLDET2310P MUMA082P1T
MLDET2510P MKDET1310P MUMS042A1AOS
MSM041A211 MQMA042A1E MSMA022P1A
MSM042P1B MSM042AJB MSM011P1N
MQMA022S2P MSM012AJA MSM012P1F
MDMA152S1C MSM042AJA MQMA012C2P
MSMA022A1B MSM021DJE MSD043A1X
MSD043A1XX MSM042A1A MSM5AZA1B
MUMS012C2U1S MUMS012A1F0S MSMZ082A1B
MSD013A1XX MSM012A1A MSMA012C1A
MSDA013D1A MSMA5AZS1A MQMA012P1B
MSMD042P1T MUMS022A1B0S MFM082A1C
MQMA042A1E MSMA022C1A MSMA022C1E

Below models are also available:
